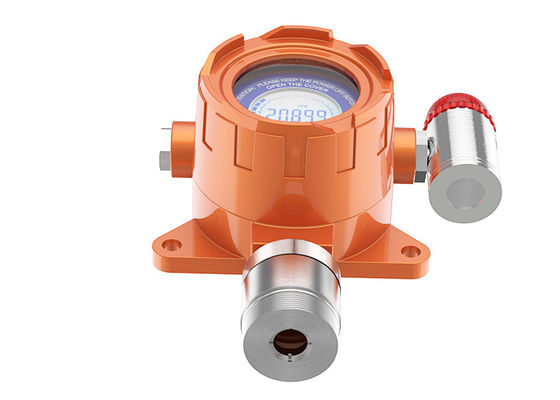

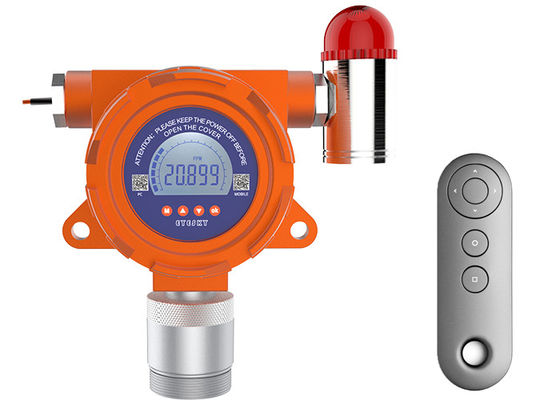

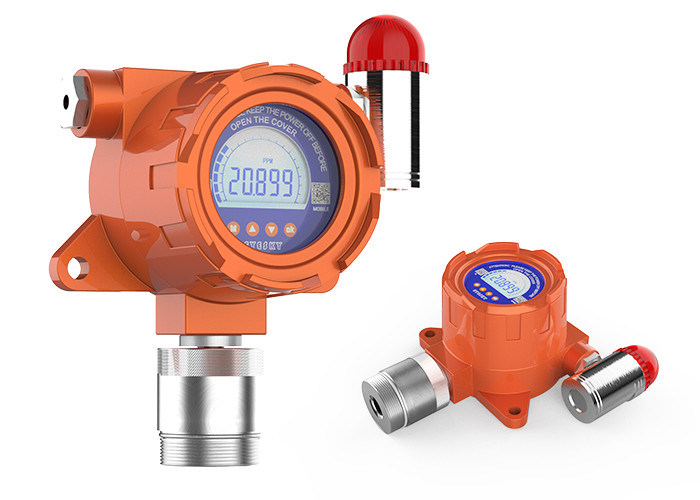

ES10B11-CO2 IP66 Industrial Gas Detectors For Carbon Dioxide

ES10B11-CO2 IP66 Industrial Gas Detectors For Carbon Dioxide

  • ES10B11-CO2 IP66 Industrial Gas Detectors For Carbon Dioxide
  • ES10B11-CO2 IP66 Industrial Gas Detectors For Carbon Dioxide
  • ES10B11-CO2 IP66 Industrial Gas Detectors For Carbon Dioxide
ES10B11-CO2 IP66 Industrial Gas Detectors For Carbon Dioxide
Product Details:
Place of Origin: china
Brand Name: eyesky
Certification: ce,fcc,iso9001
Model Number: ES10B11-CO2
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: carton package
Delivery Time: after payment 3 days
Payment Terms: D/A, T/T, Western Union, MoneyGram
Supply Ability: 1000 sets per month
Contact Now
Detailed Product Description
Protection Grade: IP 66 Packaging Dimension: 292*226*130mm
Weight: 2.1 Explosion-proof: ExdII CT6
Signal Output: 4-20mA&Rs485 Temperature: -20~50℃
High Light:

IP66 Industrial Gas Detector

,

ES10B11-CO2

,

Exd II CT6 Industrial Gas Detector

ES10B11-CO2 IP66 Industrial Gas Detector For Carbon Dioxide



Carbon Dioxide Gas Detector Feature:



  • Suitable for continuous concentration detection
  • Using the latest semiconductor nanometer process ultra-low power
  • The concentration units of PPM, %VOL and mg/m3 can be switched freely

Carbon Dioxide Gas Detector Multiple signal output :



  • 4-20mA, RS485, 0-5V, 0-10V, 4-20mA+Hart, switching volume signal
  • Multiple transmission modes are available: 3-4 core cable, optical fiber, network cable, GPRS wireless transmission, RTU wireless transmission
  • Various data receiving methods: user's computer, control alarm, PLC, DCS, mobile phone, tablet PC, etc

Carbon Dioxide Gas Detector Scene with sound and light alarm:



  • On-site concentration display and sound and light alarm exceeding the standard
  • Intrinsically safe circuit design, explosion-proof certification, obtained a number of software patents
  • Original imported sensors from many countries are selected, with long service life and many varieties of sensors.

Carbon Dioxide Gas Detector Technical Parameters:



Detection gas: carbon dioxide
Measurement range: 0-100%VOL
Resolution: 0.1%VOL
Installation: Wall mounted
Detection accuracy: ≤±3%
Linear error: ≤±1%
Response time: ≤20 seconds (T90)
Zero drift: ≤±1% (F.S/ year)
Recovery time: ≤20 seconds
Repeatability: ≤±1%

Carbon Dioxide Gas Detector



Carbon Dioxide Gas Detector



Carbon Dioxide Gas Detector



Carbon Dioxide Gas Detector



Carbon Dioxide Gas Detector



Carbon Dioxide Gas Detector

2

Carbon Dioxide Gas Detector
