LCD Display 0.7W Ozone O3 Natural Gas Detector

LCD Display 0.7W Ozone O3 Natural Gas Detector

LCD Display 0.7W Ozone O3 Natural Gas Detector
Product Details:
Place of Origin: CHINA
Brand Name: EYESKY
Certification: CE,FCC,SIL,ROSH
Model Number: ES30A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 150-500USD
Packaging Details: carton packaging
Delivery Time: 3-5 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000 sets per year
Contact Now
Detailed Product Description
Color: Yellow Humidity: 5-95% RH (non-condensing)
Display: Custom LCD Measuring Range: 0-100ppm
High Light:

O3 Ozone Gas Monitor

,

IP65 Personal Gas Detectors



Features of Portable gas detector:
Imported sensor with high performance and fast response
TFT LCD screen display with LED light.
Record the alarm data of 10,000 sets.
Can set high and low alarm value
With the 32bit low power consumption ARM processor and quick response.
Restore factory setting function, avoid the mis-operation.
Three alarm mode: Audible, Visual, Vibration.
Support for 6 sensors detecting
Support the Chinese/English language menu.
The menu interface with words and icon.
LED light function, can provide the light in the dark area or other Emergency time.
LED indicate light, will flash in the dark area.
USB charger port.
Explosion-proof grade of Ex ib IIB T3 Gb;
Protect grade of IP65.



Item Description
Gas type: O3 or customized;
Working principle: Catalytic combustion sensor for combustible gas;
Electrochemical sensor for toxic gas and oxygen.
Testing mode: Diffusion sampling.
Display mode: TFT LCD display
Concentration Unit: ppm
Measuring range: 0-100ppm or customized;
Resolution: 1ppm
Precision: ≤±3%FS;
Alarm mode: Audible-visual alarm,Vibration alarm,Voice≥75dB@25cm;
Preheat time: ≤90s;
Response time: T90≤30s;
Recovery time: ≤20s;
Explosion proof grade: Ex ib IIB T3;
Protection grade: IP66;
Output signal: Wireless transmission and print function(Optional);
Body material: PC+TPU;
Working temperature: -20℃~+50℃(or customized);
Working humidity: ≤95%RH,(non-condensing);
Charger: USB port;
Working voltage: 3.7V rechargeable lithium battery;
Charging time: ≤6 hours;
Working time: >8hours continuously(When normal temperature and no alarm);
Power consumption: <0.7W;
Working pressure: 86~106KPa;
Dimension: 119.6x60x66mm(L*W*H);
Weight: About 182g;
Warranty: 12 months;

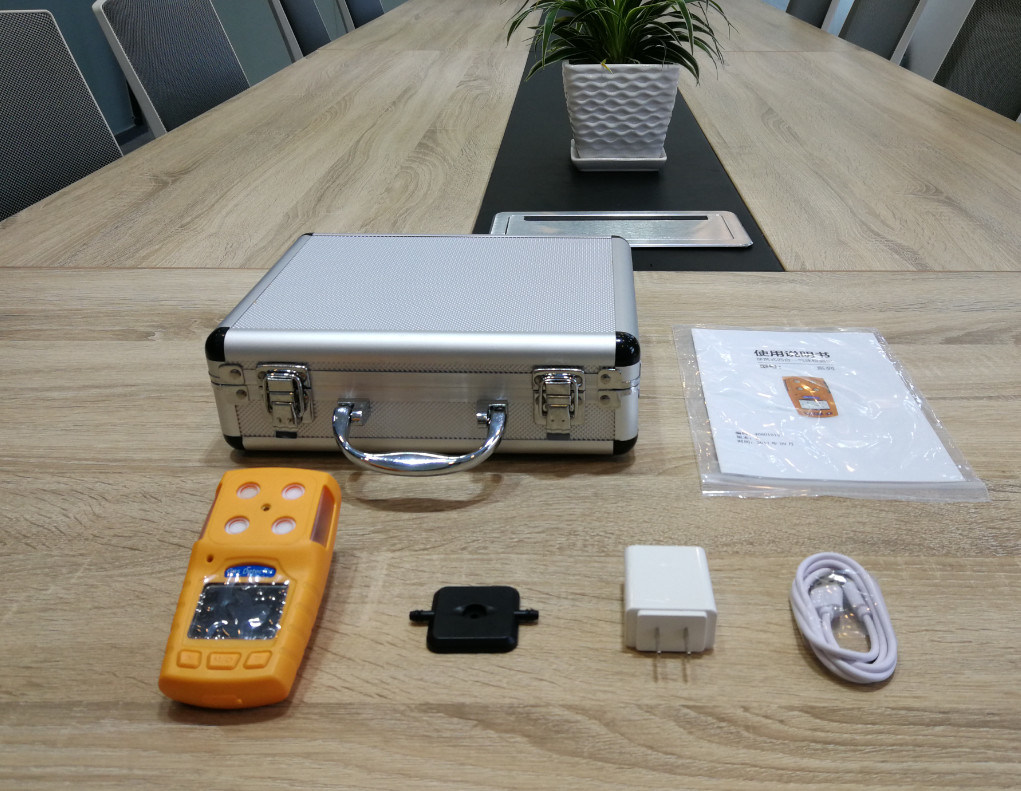

Accessory: Box, instruction, USB charger , data line, calibration cap.



Gas type Measuring range
Ex 0~100%LEL
O2 0~25%vol/30%vol
H2S 0~100ppm/1000ppm
H2 0~1000ppm/60000ppm
N2 0~100%vol
NH3 0~100ppm/500ppm
C2H6O 0~100ppm/500ppm
SO2 0~20ppm/2000ppm
Cl2 0~10ppm/20ppm/50ppm/200ppm
HCl 0~50ppm/100ppm
HBr 0~50ppm/100ppm
ClO2 0~50ppm
NO 0~200ppm/500ppm/2000ppm
NO2 0~20ppm/100ppm/500ppm/2000ppm
HCN 0~30ppm/50ppm/100ppm
HF 0~10ppm
CH2O 0~10ppm
THT 0~50mg/m3
Helim 0~1000ppm
Argon 0~100%vol
SiH6 0~50ppm/100ppm
CH6S 0~20ppm
CO2 0~5000ppm/10000ppm
SF6 0~1000ppm
CH6 0~200ppm/10%vol
TVOC 0~20ppm/100ppm/1000ppm
CS2 0~10ppm/50ppm/100ppm
CH3Br 0~20ppm/100ppm/200ppm
CH6 0~10%vol/50%vol/100%vol
