| Place of Origin: | CHINA |
| Brand Name: | EYESKY |
| Certification: | CE，ROSH，FCC，SIL |
| Model Number: | ES80A-Y8 |
| Minimum Order Quantity: | 1 |
|---|---|
| Delivery Time: | 1-2weeks |
| Payment Terms: | L/C, D/A, T/T, Western Union, MoneyGram |
| Monitor Method: | Continuously, Automatically And Real-time | Working Principle: | Light Scattering Technique |
|---|---|---|---|
| Measurement Data: | PM2.5, PM10, TSP | Data Efficient Transmission Rate: | ≥95% |
| Remote Control: | Support For Remote Setting | Interface: | RS485/RS232 Port, Network Port |
| Transmission Network: | Automatically And Real-time Upload Data, Optional 4G/GPRS/WIFI | Scaffold Material: | Q235 |
| High Light: | air pollution detector,air quality measurement device |
||
Discription:
Online wireless environmental monitoring system could inspect the environmental quality 24 hours continuously or timing-inspection;The meteorological factors could choose to connect: Temperature, Humidity, Wind direction, Wind speed, Pressure, etc. Online air quality dust noise wind speed monitor system TSP pm2.5 pm10 detector. The shell material available for the all bad environment, dust-proof, rust-proof and moisture-proof; The protection grade is IP65; It is easy to install and operate.
Product features:
Online air quality monitor could inspect the multi environmental parameter, including of the Dust, Noise, Meteorological factors, etc. With the advantage of large measuring range, long working life and easy operation, etc. The measurement data could display on the LED screen. Online air quality dust noise wind speed monitor system TSP pm2.5 pm10 detector.
The monitor system include of inspection device, also the different optional function of Surveillance Camera, Wireless or wired Transmission, Background Data Processing System and Information Supervisory Platform. For the measurement data, the platform with the function of alarm processing, record, query, statistics, report output, etc. Online air quality monitor, Air quality detector, Pm2.5 detector, dust and noise detector
Technical parameters:
| Noise measuring range | 25~130dB(A), frequency range: 20Hz~12.5kHz dust and noise detector |
| Dust size | PM2.5, PM10 and TSP (Total suspended particulate) air monitor |
| Dust Measuring range | PM2.5:0~500ug/m3 Online air quality monitor system |
| Resolution | PM2.5:1ug/m3 |
Meteorological monitor(Optional) | Temperature: -40℃~70℃ |
| Output interface | RS232, RS485, GPRS optionaldust and noise detector |
| Power supply | 220V Online air quality monitor, Air quality detector, Pm2.5 detector |
Size | Screen: 30cm*30cm |
| Sampling time | The standard time is 10 minutes or customized |

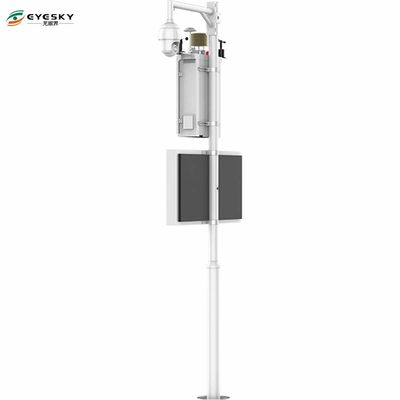

| Installation type | Vertical column or Wall-mounted |
| tems | Description | Specification |
| Particle Modules | Monitor method | Continuously, automatically and real-time |
| Working principle | Light scattering technique | |
| Measurement data | PM2.5, PM10, TSP | |
| Measuring range | 0~10mg/m3 | |
| Response time | ≤60s | |
| Resolution | 1ug/m3 | |
| Sampling flow | 1.3L/min, precision: ±3% | |
| Sampling time | Adjustable(Default is 5munites) | |
| Dehumidification | With the automatic dehumidification function module | |
| Fault alarm | Real-time display the fault alarm | |
| Noise monitor | Measuring range: 25~130dB (A) | |
| Sampling frequency: <1s | ||
| Dynamic analysis range: ≥100dB (A) | ||
| Frequency weighting: A, C,Z | ||
| Time weighting: F, S | ||
| Meteorological parameters | Temperature: Measuring range: -40℃~70℃, | |
Humidity: Measuring range: 0~100%RH, | ||
Wind direction: Measuring range: 0~360°, Precision: ±3° | ||
Wind speed: Measuring range: 0~60m/s, | ||
Barometric pressure: Measuring range: 600~1100hPa, | ||
