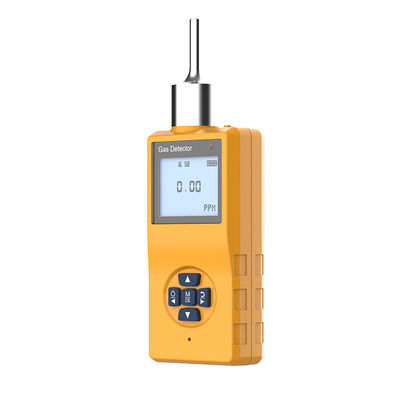

ES20C-CO2 High Precision Portable Carbon Dioxide Gas Detector Carbon Dioxide Gas Detector

ES20C-CO2 High Precision Portable Carbon Dioxide Gas Detector Carbon Dioxide Gas Detector

  • ES20C-CO2 High Precision Portable Carbon Dioxide Gas Detector Carbon Dioxide Gas Detector
  • ES20C-CO2 High Precision Portable Carbon Dioxide Gas Detector Carbon Dioxide Gas Detector
ES20C-CO2 High Precision Portable Carbon Dioxide Gas Detector Carbon Dioxide Gas Detector
Product Details:
Place of Origin: CHINA
Brand Name: EYESKY
Certification: CE,ROSH,FCC,SIL
Model Number: ES20B-CO2
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 500~2000USD
Packaging Details: carton packaging
Delivery Time: 1-2DAYS
Payment Terms: L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 1000pcs per year
Contact Now
Detailed Product Description
Weight: 240g Battery: 3.7v 1200mA Rechargeable Lithium Battery
Warranty: 1 Years Zero Drift: ≤±3%(F.S/Year)
High Light:

hazardous gas detector

,

hand held gas detector



Porduction Introduction:



ES20C portable high precision methane detector, is a method of continuous detection of methane gas concentration in the nature of safety equipment, the use of imported non dispersive infrared technology sensor, can accurately and quickly detect the concentration of methane, effectively guarantee the life safety of the staff, intelligent level two alarm function greatly meet the requirements of industrial field safety monitoring equipment. Beautiful and professional portable design for mobile use, the product is widely used in the fields of petroleum, chemical, metallurgy, petrochemical, bio pharmaceutical, environmental protection at home and school laboratory.


Features:


English menu, the simple operation of the five keys, can quickly and accurately set the parameters and calibration data

Large capacity rechargeable lithium battery can be used for long time continuous operation.

Clear digital LCD backlight LCD design, the user can set the level of its own alarm point

Built in super suction pump, easy to be unable to enter the test environment

Sensor using original imported infrared methane sensor

Can control the data and restore factory settings and other functions for the user to solve the trouble caused by the improper operation of the

Unique aluminum alloy shell design, non slip, dust, not easy to wear

Self zero point and target point calibration function



Item Description
Detecting gas: CO2
Working principle: Catalytic combustion, electrochemistry, infrared absorption spectrum principle
Sampling method: Pump suction/dispersive
Measure range: 0-2000ppm,0-5%,50%,100%VOL(Optional, other range can be customized)
Resolution: 1ppm,0.01%VOL,0.1%VOL
Accuracy: ±3%FS
Repeatability: <3%
Respond time: T90 ≤30 sec
Alarm method: Sound and light alarm, double color LED lamp, sound or 75 db @ 25 cm
Operation method: Key operation(Life time of keys:2000000 times)
Material of host: Full metal jacket, strong wear resistant corrosion, feel is good
Working temperature: -30℃~+70℃(Conventional gas),-20℃~+50℃(poisonous gas)
Working humidity: 10%RH ~95%RH,No condensation
Working pressure: 86kPa~106kPa
Battery: Built-in high-performance lithium-ion batteries, import core: nominal voltage 3.7 VDC, 2500 mah
Charger: Travel charger with USB interface, USB power supply DC5V, charging temperature range: 0 ℃ to 40 ℃
Charging time: ≤6 hours, total charged time 12 hours
Continuous working time: ≥12 hours
Dimension: 135x65x35mm(LxWxH)
Weight About 0.46Kg
Protection grade: IP66
Execution standard: GB15322.1-2003,GB3836.1-2010,GB3836.2-2010,GB3836.4-2010
Quality assurance: One year warranty, the warranty period free maintenance, sensitive components such as sensors, according to the standard of sensor manufacturers.
