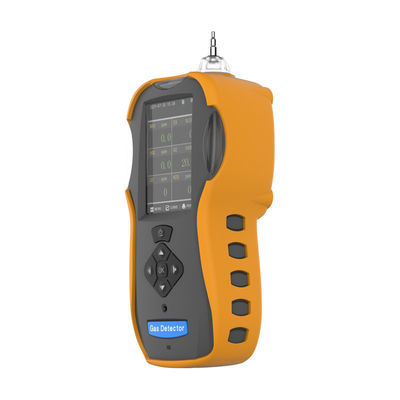

Sound Light Alarm O2 H2S Portable Multi Gas Detector

Sound Light Alarm O2 H2S Portable Multi Gas Detector

Sound Light Alarm O2 H2S Portable Multi Gas Detector
video
Sound Light Alarm O2 H2S Portable Multi Gas Detector
Product Details:
Place of Origin: CHINA
Brand Name: EYESKY
Certification: CE,FCC,SIL,ROSH
Model Number: ES60A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: carton packaging
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1000 sets per year
Contact Now
Detailed Product Description
Detecting Gas: O2,CO,combustible Gas,LEL,H2S Alarm Type: Sound,light,vibration
Usage: Safety Color: Yellow
High Light:

H2S Portable Multi Gas Analyzer

,

IP67 Portable Multi Gas Analyzer



Name Description
Product name:

ES60A Portable pump type 6 in 1 gas detector



Detecting principle Catalytic,Infrared,electrochemical,Photoion,PID,thermal conductance;
Sensor It can simultaneously accurate monitor NH3,H2S,O2 and other six gases (See sensor selection for details);
Display mode 3.5 inch,320*480 high definition color screen display,6 keys operation;
Backlight Highlight whtie LED backlight,Adjustable brightness;
Display unit %VOL,%LEL,PPMoptional
Temperature humidity measure

Optional function

Temperature:-40℃~60℃ Accuracy:±1.5℃

Humidity:0%~99% Accuracy:±7.5%RH

Alarm mode: Sound,.light and vibration
Detecting arrancy: ≤±3%FS;(Actual concentration, higher precision requirements according to the performance of the sensor)
Operation way Keys operation
Preheat time: ≤80 S;
Work indicating lamp Green light
Fault light Yellow light
Alarm light Red light
Battery capacity 3.6VDC,The large-capacity rechargeable lithium battery can support the instrument to work for more than 8h, with over-charge, over-discharge, over-pressure, overheating and short-circuit protection function;
Charger 5v standard charger,Equipped with European and American standard adapter
Data storage The standard capacity of 80,000 pieces of data supports the view, and delete or export the data , and supports the upper computer software and APP software to view the data
Communication mode Bluetooth communication(optional);
Printer Optional, external miniature bluetooth printer;
Body material: Shell:ABS;
Face-plate:Transparency PC;
Working temperature: -20℃~+50℃
Working humidity: 15%~95%RH( without condensation);
Working pressure: 86~106KPa;
Dimension: 98*71*226mm(L x W x H);
Weight : About 0.28Kg (Excluding sensors);
Protection Level: IP66,ra6in proof and short time soak dust proof;
Standard accessories Specification,User guide,certification of quality,charger (include charging line),sling,waterproof and breathable membrane,High-grade instrument case,Gas sensor module(Optional),Hand handle air pipe(optional),Wireless data communication(Optional),bluetooth printer(optional).



Sound Light Alarm O2 H2S Portable Multi Gas Detector 0

Specification:

Outer dimension:98*71*226(L x W x H);

Weight:

Shell material:ABS+PC

Display:

Display mode:3.5寸 color screen

Backlight:highlight LED

Alarm mode:sound, light and vibration

Shell protection level:IP67

Others:

Working temperature:-20℃~+50℃

Working humidity:15%~95%RH(No condensing)

Concentration unit:%VOL,%LEL,PPM, optional

Detection mode:pump suction



ES60A portable multi-parameter gas detector is a high-end detector produced by Eyesky according to market needs, adopt new original imported sensor and 32 bit processor;The circuit adopts 4 layers of wiring, which has stronger anti-interference ability to weak signal;Independent high-precision imported ADC conversion chip,With eyesky- specific signal processing algorithm,The measurement results are more accurate and stable;3.5-inch color LCD interface,Intuitive reading;First-class process design,Brought a rock-solid quality. This instrument has stable and reliable performance,In the domestic leading level. Products are widely used in: petroleum, petrochemical, chemical, coking, municipal bio-pharmaceutical, home environmental protection school, laboratory, automobile exhaust, electric power, ship sewage treatment and other places that need continuous detection of inflammable, explosive, toxic and harmful gases.

Sound Light Alarm O2 H2S Portable Multi Gas Detector 1

Sound Light Alarm O2 H2S Portable Multi Gas Detector 2Sound Light Alarm O2 H2S Portable Multi Gas Detector 3Sound Light Alarm O2 H2S Portable Multi Gas Detector 4
