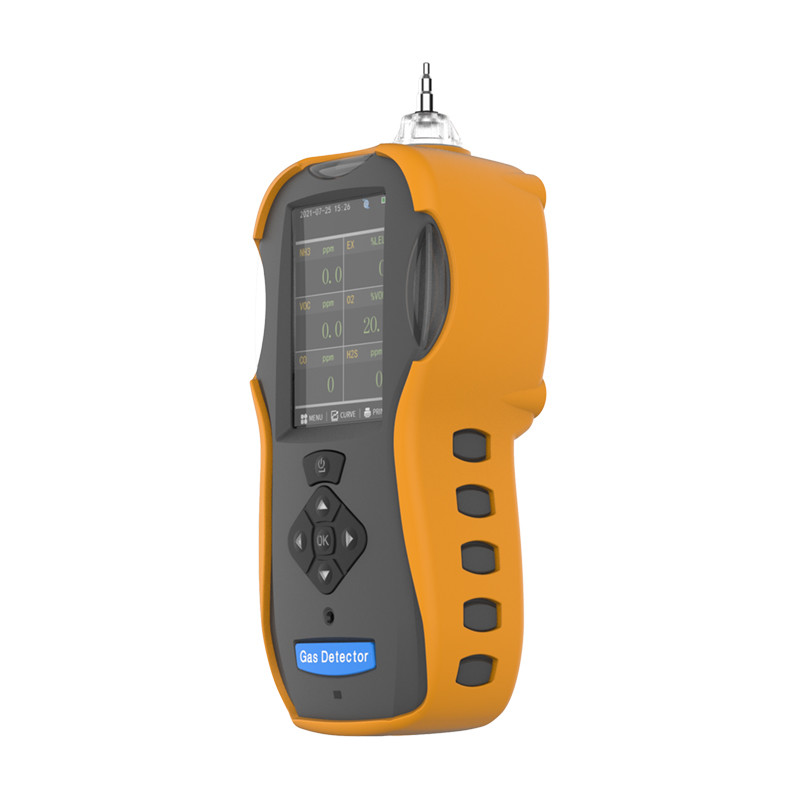

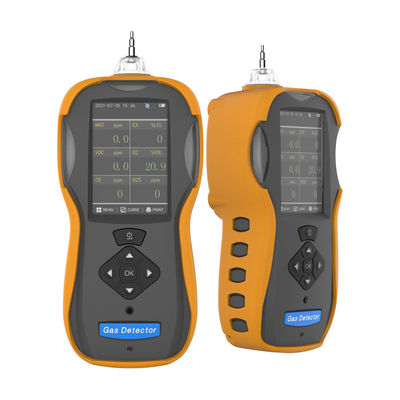

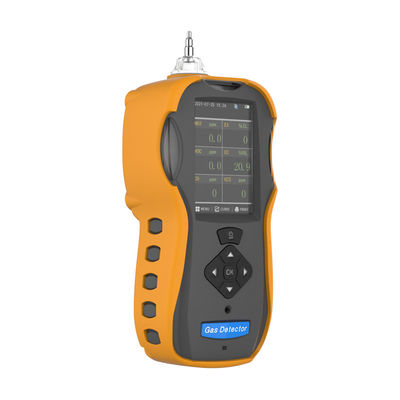

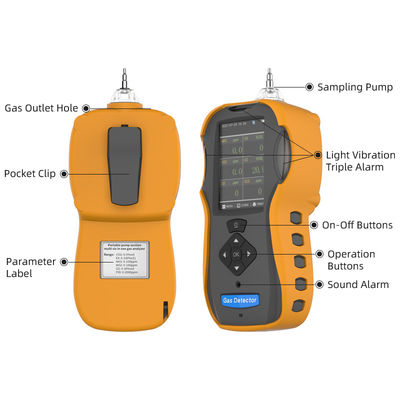

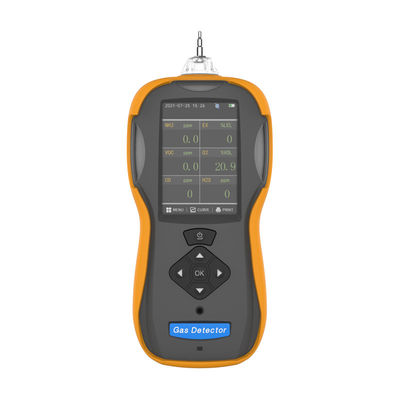

119 . 6 * 60 * 44MM Portable Multi Gas Detector With Original Imported Sensor

119 . 6 * 60 * 44MM Portable Multi Gas Detector With Original Imported Sensor

    • 119 . 6 * 60 * 44MM Portable Multi Gas Detector With Original Imported Sensor
    • 119 . 6 * 60 * 44MM Portable Multi Gas Detector With Original Imported Sensor
  • 119 . 6 * 60 * 44MM Portable Multi Gas Detector With Original Imported Sensor

    Product Details:

    Place of Origin: CHINA
    Brand Name: EYESKY
    Certification: CE,ROSH,FCC,SIL
    Model Number: ES60A

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Delivery Time: 2-3DAYs
    Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram
    Contact Now
    Detailed Product Description
    Precision: ≤±3%FS Alarm Mode: Audible-visual Alarm,Vibration Alarm,Voice≥75dB@25cm;
    Preheat Time: ≤90s Response Time: T90≤30s
    Recovery Time: ≤20s Explosion Proof Grade: Ex Ib IIB T3
    Protection Grade: IP64
    High Light:

    4 in 1 gas detector

    ,

    gas testing equipment

    Product features:

    Portable 6 in 1 gas detector used to detect the gas concentration in many applications, including of the chemical industry, petroleum, gas station, metallurgy, agriculture, biology pharmaceuticals, power, lab research and other industry environment where need to inspect combustible or toxic gas concentration.

    The Portable 4 in 1 gas detector with the LED light, it’s very convenient for the underground usage, such as the Mine, Coal Mine, Tunnel, etc.



    Features of Portable 6 in 1 gas detector:

    Original imported sensor with high performance and precision, good stability and repeatability, long working time.

    TFT LCD screen display the measuring data.

    Record the alarm data of 10,000 sets.

    With the 32bit low power consumption ARM processor and quick response.

    Restore factory setting function, avoid the mis-operation.

    Three alarm mode: Audible, Visual, Vibration.

    Support for 4 sensor at the same time.

    Support the Chinese/English language menu.

    The menu interface with words and icon.

    Explosion-proof grade of Ex ib IIB T3 Gb;

    Protect grade of IP65.





    Item Description
    Gas type: Ex,O2,CO,H2S,voc,o3 or customized;
    Working principle:

    Catalytic combustion sensor for combustible gas;

    Electrochemical sensor for toxic gas and oxygen.

    Testing mode: Diffusion sampling.
    Display mode: TFT LCD display
    Concentration Unit: %VOL,%LEL,ppm,mg/m3;
    Measuring range:

    EX:0-100%LEL;

    O2:0-30%VOL

    CO:0-500ppm

    H2S:0-100ppm

    voc:0-1000ppm

    o3:0-100ppm

    ; or customized;

    Resolution:

    EX:1%LEL;

    O2:0.1%VOL

    CO:1ppm

    H2S:1ppm

    voc:1ppm

    o3:1ppm

    ; or customized;

    Precision: ≤±3%FS;
    Alarm mode: Audible-visual alarm,Vibration alarm,Voice≥75dB@25cm;
    Preheat time: ≤90s;
    Response time: T90≤30s;
    Recovery time: ≤20s;
    Explosion proof grade: Ex ib IIB T3;
    Protection grade: IP64;
    Output signal: Wireless transmission and print function(Optional);
    Body material: PC+TPU;
    Working temperature: -20℃~+50℃(or customized);
    Working humidity: ≤95%RH,(non-condensing);
    Charger: USB port;
    Working voltage: 3.7V rechargeable lithium battery;
    Charging time: ≤6 hours;
    Working time: >8hours continuously(When normal temperature and no alarm);
    Power consumption: <0.7W;
    Working pressure: 86~106KPa;
    Dimension: 119.6x60x44mm(L*W*H);
    Weight: About 182g;
    Standards: GB3836.1-2010,GB3836.2-2010,GB3836.4-2010,MT 704-2008, MT 703-2008,MT 1084-2008,GB 15322.3-2003;
    Warranty: 12 months;
    Accessory: Box, instruction, USB charger , data line, calibration cap.



    6in1gas detector
