    Product Details:

    Place of Origin: CHINA
    Brand Name: EYESKY
    Certification: CE,ROSH,FCC,SIL
    Model Number: ES80Y-20

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Delivery Time: 1-2DAYS
    Payment Terms: L/C, D/A, D/P, Western Union, MoneyGram
    Contact Now
    Detailed Product Description
    Automotive Industry: Internet Access Approval: IP65
    Power Supply: 220V AC Accuracy: ±3%
    Sampling Method: Pump Sampling Application: Industrial/Architecture
    High Light:

    exhaust gas detector

    ,

    exhaust gas emission analyzer

    Pretreatment Exhaust Gas Monitoring System For Industry / Architecture 0

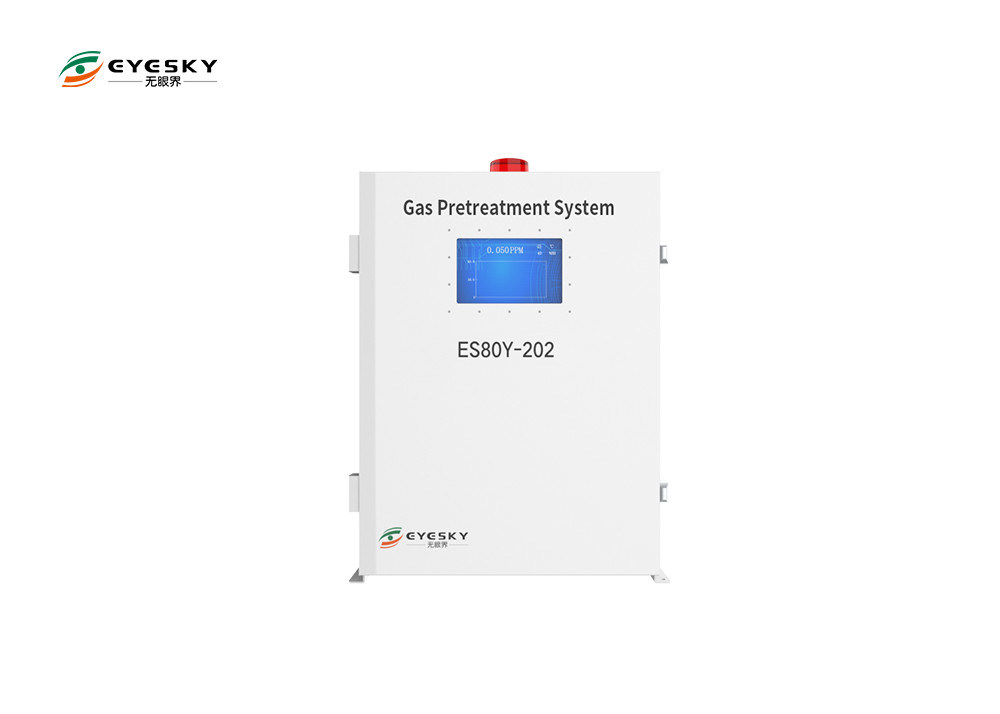

    One Stop Solution Gas Pretreatment System For Complicated Industry Detection



    The gas monitoring system with pre-treatment is mainly used in high temperature, high humidity, high dust, oil and water mixed harsh environments. It’s a solution for gas pretreatment and online monitoring. The main principle is to sample the target gas for cooling, dehumidification and filtration of oil-water, dust to ensure the maximum accuracy of the gas detection, to prolong the service life and to improve the reliability of the inside sensors. The test result is more Precise and trustworthy.



    Specifications



    Size 380(L)*320(W)*150(H)mm
    Explosion proof Ex d IIC T6
    Degree of protection IP65
    Repeatability <2%
    Zero offset <±2%(F.S)/6M
    Working voltage 24V,2A
    LED Display mode ppm,%VOL,%LEL
    Digital Signal output bus system RS485 digital signal output
    Working temperature – 40℃~+70℃,≤90%RH
    Sampling temperature – 40℃~+200℃(standard),Optional:- 40℃~+300℃,- 40℃~+800℃,- 40℃~+1300℃
    Sampling humidity 0-99%RH (no condensation)
    Steady temperature 25℃,after treatment
    Steady humidity 70%RH, after treatment and can set up
    Sampling flow rate adjustable, 2L/min, 8L/min are optional
    Signal output 4-20mA (2 lines or 3 lines) RS485,relay output



    Fast response &high accuracy

    Imported with world top brand sensors, high accuracy and the test results can be certified by third party authorities in one time.

    Equipped with three-layer filter system to filter oil, water, dust and other impurities efficiently. Even in the most severe industrial environment, the test results can be trusted



    High temperature environment can be detected

    Standard processing temperature is 200 ℃, up to 1300 ℃ flue gas



    Remote sampling can be achieved

    With internal pump, standard sampling distance is 5-30m, with optional vacuum pump, the farthest distance is more than 70m



    Remote control, more convenient

    Equipped with infrared remote controller, the installation, observation and maintenance of on-site equipment are not disturbed by the change of light, distance and position



    Support remote transmission

    4-20mA and standard RS485 signal output, can communicate with computer in real time



    Application

    Agricultural greenhouses, laboratories, pipelines, exhaust gas treatment, cold storage and other harsh environments
