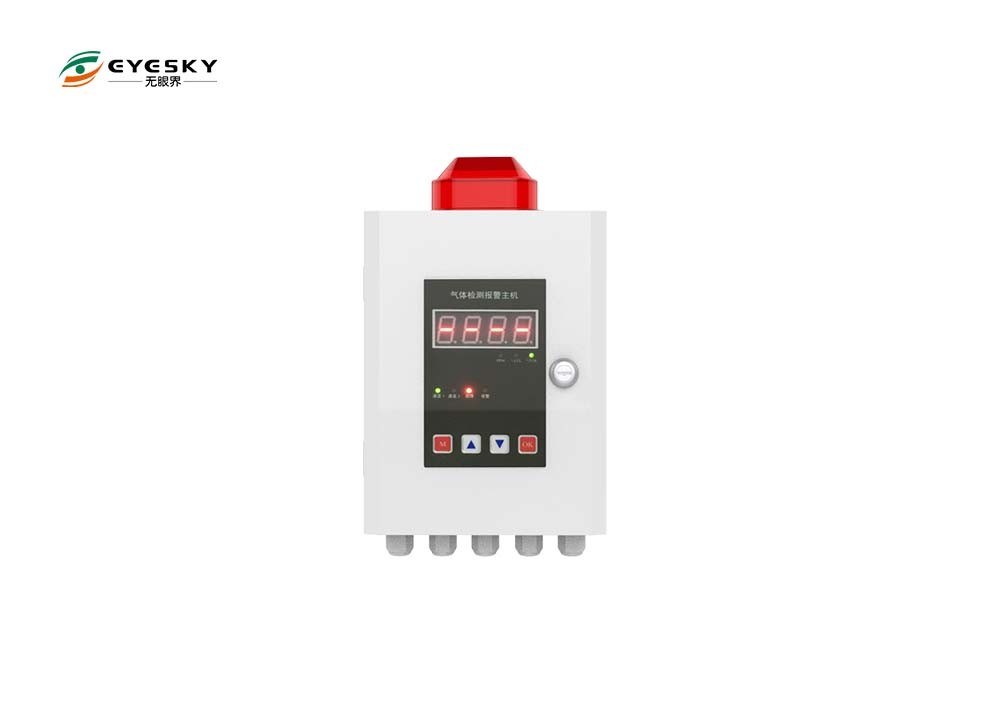

2 . 6Kg Electric Gas Detector Controller 8 Channels 4 - 20Ma Signal Output

2 . 6Kg Electric Gas Detector Controller 8 Channels 4 - 20Ma Signal Output

    • 2 . 6Kg Electric Gas Detector Controller 8 Channels 4 - 20Ma Signal Output
  • 2 . 6Kg Electric Gas Detector Controller 8 Channels 4 - 20Ma Signal Output

    Product Details:

    Place of Origin: CHINA
    Brand Name: EYESKY
    Certification: CE,ROSH,FCC,SIL
    Model Number: ES90C00-8

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Delivery Time: 1-2DAYS
    Payment Terms: L/C, D/A, D/P, Western Union, MoneyGram
    Contact Now
    Detailed Product Description
    Display Mode: Digital Tube, LED Display Power Consumption: <2W
    Input Signal: 4-20mA Working Temperature: -20℃~+50℃
    Working Humidity: 95% RH Or Less, Without Condensation Size: L325mm*W220mm*H74mm
    Weight: About2.6KG Installation Mode: Wall Mounted Mounting
    High Light:

    gas detector parts

    ,

    gas detector accessories



    Transmission distance

    The maximum distance between the detector and the controller is less than 1000 meters, and the maximum distance between the computer and the controllers is less than 1000 meters





    Product features:



    The 4gas alarm controller is a smart controlled system that is practical and easy operated. It can be connected to the gas sensor that with 4-20mA signal output, to realize remote control and system integration. It is compatible to different kinds of gas sensors, mainly use for areas that need to measure combustible or toxic gases, which can show the gas concentration directly, and when the gas concentration reaches to the alarm point, the controller will alarm with sound and light. The controller is also with relay output, which can control the exhaust fan and other devices, to realize intelligent and automatic operation.



    Specifications:



    Detection principle

    the system supply 24V DC power for the connected sensors, and collected the 4-20mA input signals, analyze and show the data of the sensors, and set alarm data of the sensors



    Application

    the system is suitable for all the sensors with 4-20mA signal output



    Display

    High light LED nixie tube display



    Working voltage 220V AC, 50HZ
    Working environment: temperature

    20℃~50℃, humidity <95%



    System power under full load of 8 channels, max consumption is 50W
    Alarm set low alarm, high alarm
    Alarm way two levels light and sound alarm
    Input signal 4-20mA
    Output signal

    4-20mA (optional)



    Signal transmission distance

    1000m



    Relay output

    several relays signal output, which is corresponding to the input signal accordingly. The corresponding channel and output method are adjustable.



    Install method wall mounted
    Dimension

    48cm*27cm*9cm



    Weight 4.6kg



    Characteristics


    ·Advance micro-processing technology
    ·Good stability, high precision
    ·Universal, 4-20mA input
    ·High light LED nixie tube display the concentration, with two levels alarm setting
    ·With lock and voice elimination function
    ·Relay output

    ·4-20mA output (optional)
    ·Install method: wall mounted





    Durable

    Waterproof and dustproof, can withstand the highest standard test, IP65 protection grade

    Check all relays in real time to ensure the system runs without obstacles
