RS48 Full Screen Display Air Quality Meter With Continuous Emission Monitoring

RS48 Full Screen Display Air Quality Meter With Continuous Emission Monitoring

    • RS48 Full Screen Display Air Quality Meter With Continuous Emission Monitoring
  • RS48 Full Screen Display Air Quality Meter With Continuous Emission Monitoring

    Product Details:

    Place of Origin: China
    Brand Name: Eyesky
    Certification: CE,ROSH
    Model Number: ES80A-A6

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Delivery Time: 5-8days
    Payment Terms: L/C, Western Union, MoneyGram
    Contact Now
    Detailed Product Description
    Detecting Gas: CO,NO2,O3,SO2,PM2.5, PM10 Power Supply: 220V 50HZ
    Monitoring Method: Continuous Automatic Real-time Monitoring Output Signal: RS485 (Modbus Protocol)
    PM Minimum Detection Limit: ≤0.001 Mg/m3 Instrument Parallelism: ≤±10%
    High Light:

    air pollution detector

    ,

    air quality measurement device

    RS48, Full screen display , Air quality meter with continuous emission monitoring system



    The ambient air monitoring stations can measure outdoor air pollutants in real-time, measuring data quickly and accurately. It can be customized for different applications demands, the measurement parameter can be chose from the following: the gas type Ozone(O3), Nitrogen Dioxide(NO2), Sulfur Dioxide(SO2), Carbon Monoxide(CO), Particulate matter PM2.5 and PM10, also the Noise, Meteorological parameters (including of Temperature, Humidity, Wind speed, Wind direction, Barometric pressure ), etc.





    Items Description Specification
    Particle Modules Monitor method Continuously, automatically and real-time
    Working principle Light scattering technique
    Measurement data PM2.5, PM10
    Measuring range 0~10mg/m3
    Response time ≤60s
    Measuring time

    0.1min (Shortest measurement time)

    1min(Standard measurement time)

    Minimum detection limit ≤0.001 mg/m3
    Instrument parallelism ≤±10%
    Data validity >75%
    Dehumidification With the automatic dehumidification function module
    Alarm function With high concentration alarm function, the platform can configure the alarm threshold
    Gas modules Monitor method Continuously, automatically and real-time
    Working principle High precision Electrochemical sensor
    Gas monitor SO2, NO2, CO, O3
    Sulfur Dioxide SO2

    Measuring range: 0~2000ppb

    Resolution: 1ppb

    Response time: <45s

    Nitrogen Dioxide NO2

    Measuring range: 0~2000ppb

    Resolution: 1ppb

    Response time: <45s

    Ozone O3

    Measuring range: 0~20000ppb

    Resolution: 5ppb

    Response time: <45s

    Carbon Monoxide CO

    Measuring range: 0~200ppm

    Resolution: 0.1ppm

    Response time: <45s

    Noise monitor Measuring range: 30~130dB (A)
    Sampling frequency: <1s
    Dynamic analysis range: ≥100dB (A)
    Frequency weighting: A, C,Z
    Time weighting: F, S
    Meteorological parameters Temperature: Measuring range: -40℃~60℃, Precision: ±0.3℃ (20℃)
    Humidity: Measuring range: 0~100%RH, Precision: ±2%(5%RH~95%RH, 25℃)
    Wind direction: Measuring range: 0~360°, Precision: ±5°
    Wind speed: Measuring range: 0~30m/s, Precision: ±0.3m/s
    Barometric pressure: Measuring range: 30~110Kpa, Precision: ±2.5pa






    Air quality monitor

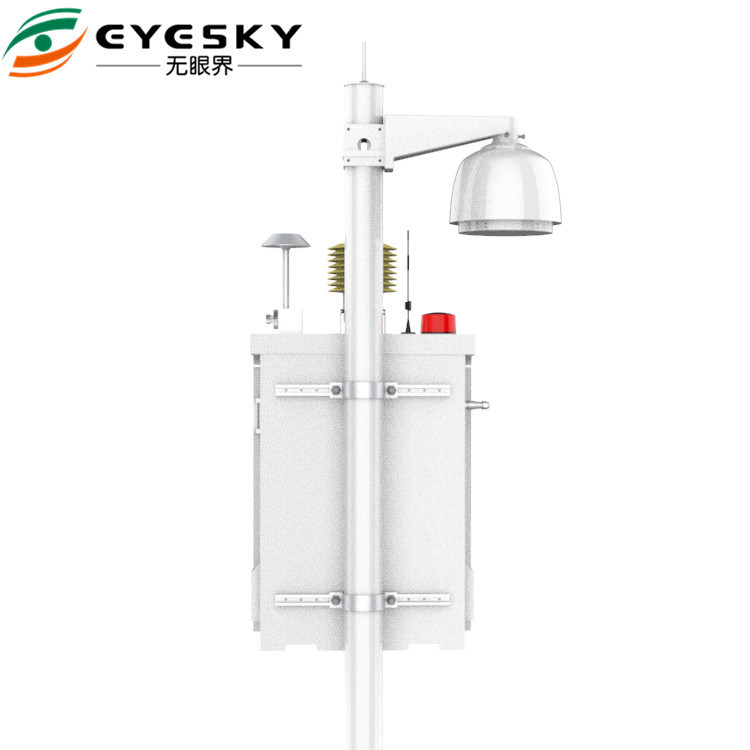

    RS48 Full Screen Display Air Quality Meter With Continuous Emission Monitoring 1RS48 Full Screen Display Air Quality Meter With Continuous Emission Monitoring 2
