| Place of Origin: | CHINA |
| Brand Name: | EYESKY |
| Certification: | CE，ROSH，FCC，SIL |
| Model Number: | ES10B-LCD-Ar-IDA |
| Minimum Order Quantity: | 1 |
|---|---|
| Delivery Time: | 3-5 working days |
| Payment Terms: | L/C, D/A, D/P, Western Union, MoneyGram |
| Sampling Methods: | Diffusion Or Pump-suction Selectable | Precision: | ≤±3%F.S |
|---|---|---|---|
| Repeatability: | ≤±1% | Zero Drift: | ≤±1%(F.S/year) |
| Response Time (T90: | ≤20s | Alarming: | Sound And Light Alarm |
| Explosion-proof Index: | Ex D IIC T6 | Protection Grade: | IP66 |
| High Light: | ROSH Industrial Gas Monitors,FCC Industrial Gas Monitors,IP66 argon gas detectors |
||

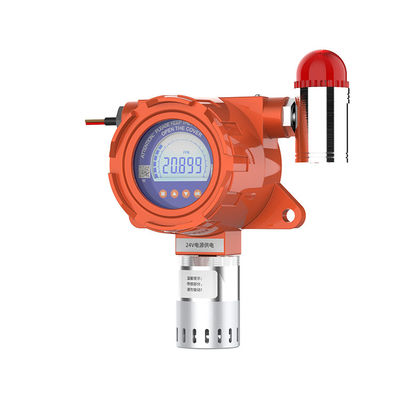

IP66 Argon Purity Industrial Gas Monitors With Sound And Light Alarm
Structural features
Main material: aluminum alloy
Weight: about 1.6kg
Size: 185*137.2*90.7mm (L*W*H)
Installation: wall - mounted, horizontal pipe, vertical pipe
Electrical service environment
Protection class: IP66
Temperature range: -20℃ ~ 50℃(toxic gas)
-40℃ ~ 70℃(combustible gas)
Humidity range: 10 ~ 95%RH (no condensation)
Pressure range: 86 ~ 106kPa
Technical parameters:
| Detection Gas | argon |
| Detecting Range | 0-99.99%vol |
| Resolution | 0.01%vol,0.1%vol |
| Sampling | Diffusion or pump-suction, circulation selectable |
| Precision | ≤±3%F.S |
| Repeatability | ≤±1% gas alarm wall-mounte N2d gas detector |
| Zero drift | ≤±1%(F.S/year) fixed gas detector online gas detector |
| Sensor Type | Electrochemical sensor |
| Sensor Life | 2~3 years online gas leak detector, fixed type gas alarm, online N2 gas measuring device |
| Response Time (T90) | ≤20s Fixed gas detector |
| Alarming mode | Audible-visual alarm(Optional) |
| Operating Environment | Temperature: -30℃~60℃ (Customized for special demands) |
| Humidity: ≤95%RH (non-condensing); if >90%RH, can add the filter | |
| Pressure: 86kPa~106kPa | |
| Working Voltage | 24V DC(16~30VDC) |
| Output Signals | (Standard)Three-wire system 4~20mA standard signals output, available for PLC, DCS, etc; |
| (Optional) Four-wire system RS485 digital signal output; | |
| (Optional) Frequency signal 200~1000Hz output; | |
| Two-level relay output:220VAC 0.5A, 5VDC 0.5A | |
| Installation Means | Wall mounted, Pipe type (Thread:M40*1.5 ) |
| Material of Body | Cast aluminum |
| Explosion-proof Index | Ex d IIC T6 |
| Protection Grade | IP66 |
| Electrical Interface | 3/4″NPT(Female Screw),1/2″NPT(Female Screw) |
| Transmit Distance | ≤2000m (If more than 2000m, can add the repeater.) |
| Dimension | 210 mm×140 mm×92 mm(L×W×H) |
| Weight | About 1.5Kg |
| Standards | GB15322.1-2003,GB3836.1-2010,GB3836.2-2010,GB3836.4-2010 |
| Warranty | 12months |
| Standards | GB15322.1-2003,GB3836.1-2010,GB3836.2-2010,GB3836.4-2010 |
1. Do you support sample orders?
Sure We do support sample orders, a more competitive prices for bulk orders.
2. Delivery time
1-7 days depending on the model and quantity
3. Contact information
James, Whatsapp/wechat:+ 86 13392884922
4. Quality warranty
12 months under normal
5. After-sale service support
European and American customers (processing within 24h)
Asian customers (processing within 12h)
6. OEM and ODM service
Support we have a professional R&D team of more than 20 persons to provide OEM&ODM services for you.
7. Are you trading company or manufacturer ?
Original Factory We have two factories located in ShenZhen&Xi’an.
8. What are your terms of payment?
We accept T/T, Paypal, Master Card, Visa, Western Union, L/C.
