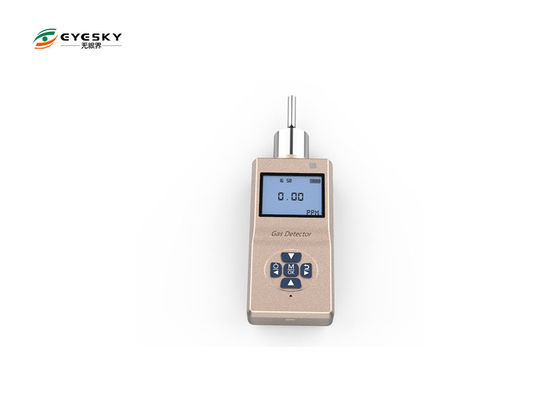

Portable Carbon Monoxide Gas Detectors For No Condensation Working

Portable Carbon Monoxide Gas Detectors For No Condensation Working

    • Portable Carbon Monoxide Gas Detectors For No Condensation Working
    • Portable Carbon Monoxide Gas Detectors For No Condensation Working
  • Portable Carbon Monoxide Gas Detectors For No Condensation Working

    Product Details:

    Place of Origin: CHINA
    Brand Name: EYESKY
    Certification: CE,ROSH,FCC,SIL
    Model Number: ES20B-CO

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Delivery Time: 2-3Days
    Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram
    Contact Now
    Detailed Product Description
    Sampling Method: Pump Suction Accuracy: ≤3%FS
    Repeatability: <3%FS Respond Time: T90 ≤30 Sec
    Alarm Method: Sound And Light Alarm Protection Grade: IP66
    Working Pressure: 86kPa~106kPa Working Humidity: 10%RH ~95%RH,No Condensation
    High Light:

    electronic gas detector

    ,

    helium leak detector



    Product features:



    1. English menu, the simple operation of the five keys, can quickly and accurately set the parameters and calibration data
    2. Large capacity rechargeable lithium battery can be used for long time continuous operation.
    3. Clear digital LCD backlight LCD design, the user can set the level of its own alarm point
    4. Unique aluminum alloy shell design, non slip, dust, not easy to wear
    5. Self zero point and target point calibration function

    Technical parameters:



    Item Description
    Detecting gas: carbon monoxide
    Working principle: Catalytic combustion, electrochemistry, infrared absorption spectrum principle
    Sampling method: Pump suction/dispersive
    Measure range: 0-100,500,1000,5000,10000,40000ppm(Optional, other range can be customized)
    Resolution: 0.01ppm,0.1ppm,1ppm
    Accuracy: ±3%FS
    Repeatability: <3%
    Respond time: T90 ≤30 sec
    Alarm method: Sound and light alarm, double color LED lamp, sound or 75 db @ 25 cm
    Operation method: Key operation(Life time of keys:2000000 times)
    Material of host: Full metal jacket, strong wear resistant corrosion, feel is good
    Working temperature: -30℃~+70℃(Conventional gas),-20℃~+50℃(poisonous gas)
    Working humidity: 10%RH ~95%RH,No condensation
    Working pressure: 86kPa~106kPa
    Battery: Built-in high-performance lithium-ion batteries, import core: nominal voltage 3.7 VDC, 2500 mah
    Charger: Travel charger with USB interface, USB power supply DC5V, charging temperature range: 0 ℃ to 40 ℃
    Charging time: ≤6 hours, total charged time 12 hours
    Continuous working time: ≥12 hours
    Dimension: 135x65x35mm(LxWxH)
    Weight About 0.46Kg
    Protection grade: IP66
    Execution standard: GB15322.1-2003,GB3836.1-2010,GB3836.2-2010,GB3836.4-2010
    Quality assurance: One year warranty, the warranty period free maintenance, sensitive components such as sensors, according to the standard of sensor manufacturers.
