| Place of Origin: | CHINA |
| Brand Name: | EYESKY |
| Certification: | CE，ROSH，FCC，SIL |
| Model Number: | ES10B11-O3 |
| Minimum Order Quantity: | 1 |
|---|---|
| Delivery Time: | 1-2DAYS |
| Payment Terms: | L/C, D/A, D/P, Western Union, MoneyGram |
| Sampling Methods: | Diffusion Or Pump-suction Selectable | Precision: | ≤±3%F.S |
|---|---|---|---|
| Repeatability: | ≤±1% | Zero Drift: | ≤±1%(F.S/year) |
| Sensor Life: | 2~3 Years | Alarming: | Sound And Light Alarm |
| Explosion-proof Index: | Ex D IIC T6 | Protection Grade: | IP66 |
| Highlight: | electronic gas detector,helium leak detector |
||

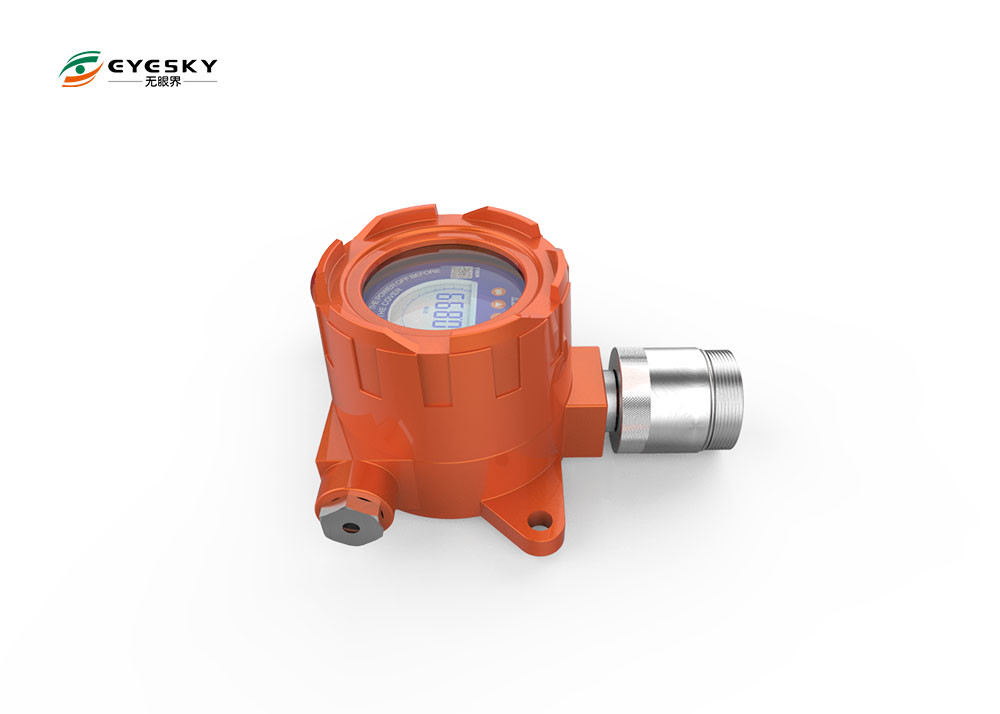

0 - 1PPM High Precision Industrial Gas Detectors Fixed Type 210 * 140 * 92MM
Discription:
0 - 1ppm high precision industrial gas detectors fixed type 210 * 140 * 92mm adopt original imported sensor. And There is patent structure technology, IP66 level trebling water-proof design and Ultra low power 32 bit microprocessor . 0 - 1ppm high precision industrial gas detectors fixed type 210 * 140 * 92mm has 4-20A and RS485 two signals output. It connect with many controller system, such as PLC, DCS, computer and other, with the function of remote monitor and alarm, data logger and analysis.
Technical parameters:
| Detection Gas | ozone |
| Detecting Range | 0-1ppm |
| Resolution | 0.001ppm |
| Sampling | Diffusion or pump-suction, circulation selectable |
| Precision | ≤±3%F.S |
| Repeatability | ≤±1% gas alarm wall-mounte N2d gas detector |
| Zero drift | ≤±1%(F.S/year) fixed gas detector online gas detector |
| Sensor Type | Electrochemical sensor |
| Sensor Life | 2~3 years online gas leak detector, fixed type gas alarm, online N2 gas measuring device |
| Response Time (T90) | ≤20s Fixed gas detector |
| Alarming mode | Audible-visual alarm(Optional) |
| Operating Environment | Temperature: -30℃~60℃ (Customized for special demands) |
| Humidity: ≤95%RH (non-condensing); if >90%RH, can add the filter | |
| Pressure: 86kPa~106kPa | |
| Working Voltage | 24V DC(16~30VDC) |
| Output Signals | (Standard)Three-wire system 4~20mA standard signals output, available for PLC, DCS, etc; |
| (Optional) Four-wire system RS485 digital signal output; | |
| (Optional) Frequency signal 200~1000Hz output; | |
| Two-level relay output:220VAC 0.5A, 5VDC 0.5A | |
| Installation Means | Wall mounted, Pipe type (Thread:M40*1.5 ) |
| Material of Body | Cast aluminum |
| Explosion-proof Index | Ex d IIC T6 |
| Protection Grade | IP66 |
| Electrical Interface | 3/4″NPT(Female Screw),1/2″NPT(Female Screw) |
| Transmit Distance | ≤2000m (If more than 2000m, can add the repeater.) |
| Dimension | 210 mm×140 mm×92 mm(L×W×H) |
| Weight | About 1.5Kg |
| Standards | GB15322.1-2003,GB3836.1-2010,GB3836.2-2010,GB3836.4-2010 |
| Warranty | 12months |
| Standards | GB15322.1-2003,GB3836.1-2010,GB3836.2-2010,GB3836.4-2010 |
