| Place of Origin: | CHINA |
| Brand Name: | EYESKY |
| Certification: | CE,FCC,SIL,ROSH |
| Model Number: | ES30A-O2 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | 150-500USD |
| Packaging Details: | carton packaging |
| Delivery Time: | 3-5 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 sets per year |
| Operating Temperature: | -20°C To +50°C (-4°F To 122°F) | Zero Drift: | ≤±1%(F.S/Year) |
|---|---|---|---|
| Response Time: | T90<30s | Sensor: | Catalytic Or Electrochemical Or Infrared |
| Protection Class: | IP64 | Detection Principle: | Electrochemical |
| Warranty: | 1 Years | Battery: | 3.7v 1300mA Rechargeable Lithium Battery |
| Highlight: | IP66 Oxygen Gas Monitor,0.7W Combustible Gas Detector |
||

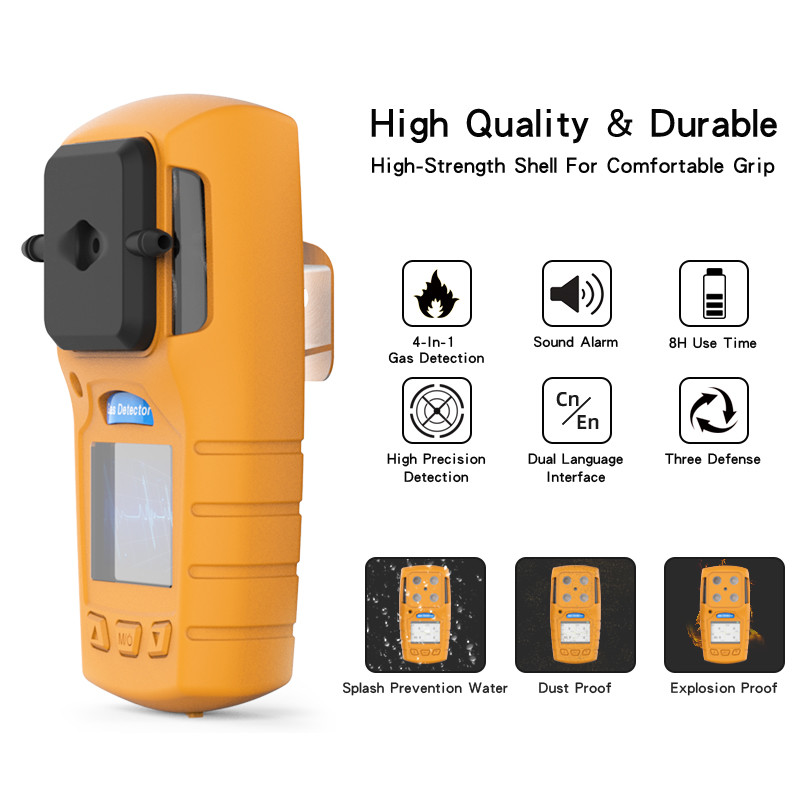

Oxygen Gas Detector Portable Gas Detector Gas Leak Detector With Data Stored High Precision Oxygen Gas Monitor
| Item | Description |
| Gas type: | O2or customized; |
| Working principle: | Catalytic combustion sensor for combustible gas; |
| Electrochemical sensor for toxic gas and oxygen. | |
| Testing mode: | Diffusion sampling. |
| Display mode: | TFT LCD display |
| Concentration Unit: | %VOL,%LEL,ppm,mg/m3; |
| Measuring range: | O2:0-30%VOL |
| Resolution: | O2:0.1%VOL |
| Precision: | ≤±3%FS; |
| Alarm mode: | Audible-visual alarm,Vibration alarm,Voice≥75dB@25cm; |
| Preheat time: | ≤90s; |
| Response time: | T90≤30s; |
| Recovery time: | ≤20s; |
| Explosion proof grade: | Ex ib IIB T3; |
| Protection grade: | IP64; |
| Output signal: | Wireless transmission and print function(Optional); |
| Body material: | PC+TPU; |
| Working temperature: | -20℃～+50℃(or customized); |
| Working humidity: | ≤95%RH,(non-condensing); |
| Charger: | USB port; |
| Working voltage: | 3.7V rechargeable lithium battery; |
| Charging time: | ≤6 hours; |
| Working time: | ＞8hours continuously(When normal temperature and no alarm); |
| Power consumption: | <0.7W; |
| Working pressure: | 86～106KPa; |
| Dimension: | 119.6x60x66mm(L*W*H); |
| Weight: | About 182g; |
| Warranty: | 12 months; |
| Accessory: | Box, instruction, USB charger , data line, calibration cap. |
With the 32bit low power consumption ARM processor and quick response.
Restore factory setting function, avoid the mis-operation.
Three alarm mode: Audible, Visual, Vibration.
Support for 6 sensors detecting
Support the Chinese/English language menu.
The menu interface with words and icon.
LED light function, can provide the light in the dark area or other Emergency time.
LED indicate light, will flash in the dark area.
USB charger port.
Explosion-proof grade of Ex ib IIB T3 Gb；
Protect grade of IP65.
Imported sensor with high performance and fast response
TFT LCD screen display with LED light.
Record the alarm data of 10,000 sets.
Can set high and low alarm value
