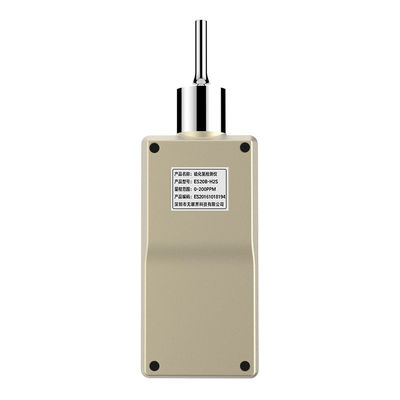

High Precision aluminum alloy Single Gas Detector For Argon Leakage

High Precision aluminum alloy Single Gas Detector For Argon Leakage

Functional characteristics

1. can store 100000 groups of data;
2. the intelligent algorithm, multi-point calibration and temperature compensation, more accurate measurement results;
3. 2600 milliampere large capacity lithium battery, continuous work time more than 20 hours;
4. VOL %, % LEL, mg/m3, PPM, PPH, and different kinds of parts per unit can choose;
5. Acousto-optic alarm, timely alarm when the concentration exceeds the standard is detected;

Performance:

• Detection principle: catalytic combustion type, electrochemical type, light ion type, thermal conductivity type, infrared NDIR type
• Accuracy: ±3% F.S.
• Reduplication: ±2%
• Response time: T90 < 30S (different gas sensors have different response times)
• Alarm mode: sound and light alarm, two-color LED alarm light, voice ≥75dB@25cm

Structural features

• Main material: aluminum alloy
• Weight: about 0.46kg
• Size: 200.5*64.8*35.5mm (L*W*H)

Certification

Execution standard:GB15322.1-2003, GB3836.1-2010, GB3836.2-2010, GB3836.4-2010,GB12358-2006
